當前位置:首頁 >>產品中心 >>比重分選機

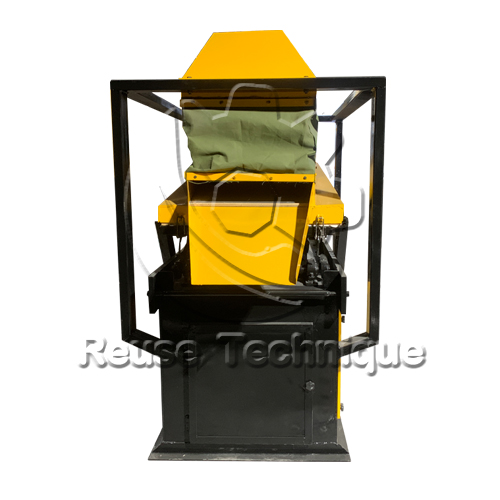

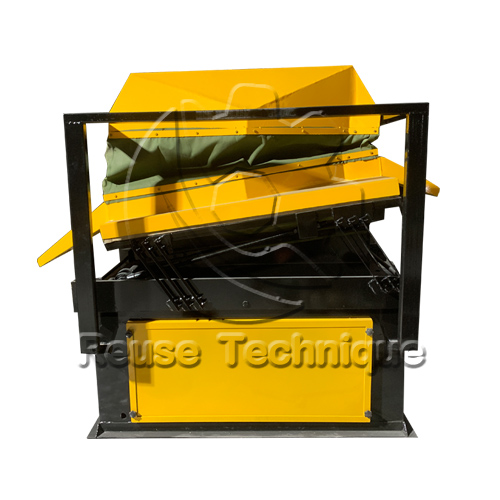

比重分選機


銅米機回收機用于回收銅線廢料、鋁線廢料和銅線,得到純銅顆粒和塑料顆粒。


13690523395
產品參數 PRODUCTS PARAMETER

適用范圍:各種廢舊電線的破碎分選,銅鋁散熱器的破碎銅、鋁、鐵分選。

Scope of application:Crushing and sorting of various waste wires, sorting of broken copper, aluminum and iron of copper aluminum radiator.

?

結構特點Structural feature:

1.一體式結構設計,結構緊湊,占地面積小,移動方便,放在平整地面接通電源即可生產。

1. Integrated structure design, compact structure, small occupied area, easy to move and it can be operated by putting it on flat ground and turning on the power .

2.采用PLC控制,外形簡潔美觀,操作簡單,一名操作人員即可生產。

2. It adopts PLC control, the appearance is simple and beautiful and the operation is simple. One operator can operate it.

3.比重分選作為銅米、塑料分選的重要部分采用意大利氣流懸浮分選工藝,震動頻率與物料懸浮送風裝置皆可根據不同物料進行精準調節。

3. As an important part of the separation of copper wire and plastic, gravity separation adopts Italy air suspension separation process, and the vibration frequency and material suspension air supply device can be adjusted precisely according to different materials.

4.破碎系統刀具采用SKD-11合金刀具,處理硬度達到HR58度,在保證高耐磨性的情況下也能保證粉碎刀片一定的韌性,結構設計為八字形交替剪切構造,電線粉碎設備外殼采用水冷系統,避免了長時間工作產生物料發熱熔融。

4. Crushing system adopts SKD-11 alloy cutting tool, the processing hardness is HR58. It can ensure the high-wearing resistance as well as a certain tenacity of the crushing blade. The structure is designed as splayed alternate shearing structure, the shell of wire grinding equipment adopts water cooling system, thus avoiding, material heating and melting after long time operation.

5.整套設備為全封閉運行,并配有脈沖除塵系統,有效的將生產過程中的灰塵收集并由灰塵排出口排放。

5. The operation of the complete set of equipment is fully enclosed, it is equipped with an advanced pulse dust removal system that effectively collects dust in the production process and discharges it from the dust outlet.

6.根據各國所生產的銅米機能回收到純度99.5%以上的銅,但是會有3-5%的銅粉以及毛絲銅會隨著分選過程流失到塑料里面的情況,我公司配有靜電精選設備,將塑料中殘存的銅再次分選出來,達到了銅里面看不到塑料,塑料里面看不到銅的效果。

6. In view of the fact that the copper wire crusher manufactured in other countries can recover the copper with a purity more than 99.5%, but 3-5% of the copper powder and brushed copper will be lost into the plastic in the sorting process, our company is equipped with electrostatic selection equipment, the remaining copper in the plastic can be sorted out again, so that there is no plastic in the copper and no copper in the plastic.?


表格參數Table?parameters:

型號 Model 外觀尺寸(MM) External dimension (mm) 破碎機 Crusher (KW) 風力輸送 (KW) Air conveying (KW) 風力分選 Wind sorting (KW) 灰塵收集 Dust collection (KW) 產量 Output (KGH) 重量 Weight
SY-400 2000*1850*2600 15 無 N/A 0.75+22 0.75 100-150 1800
SY-600 4200*1900*3800 37 3 3.75 2.2 300-400 3500
SY-1000 5180*2100*4200 45 4 3.75 3 800-1000 4600
